Set up and run Transcoder in Wowza Streaming Engine

Use the Transcoder in Wowza Streaming Engine™ media server software to decode video and audio in incoming live streams and re-encode for playback on desired playback devices. The re-encoded renditions have aligned keyframes for adaptive bitrate delivery.

Video tutorial: Adaptive bitrate streaming with Wowza Streaming Engine

---

See how to set up the Transcoder for adaptive bitrate streaming.

Configure the Transcoder in Wowza Streaming Engine Manager

---

Transcoder uses a templating system to match incoming streams to an encoding template that controls the encoding parameters of the resultant transcoded streams. Wowza Streaming Engine has four default templates for the most common workflows:


• Transcode – Ingest a source stream that isn't encoded with H.264 video and/or AAC or MP3 audio. The transcoded output has multiple bitrates, each encoded with H.264 video and AAC or MP3 audio, that are keyframe aligned for adaptive streaming.

• Transrate – Ingest a source stream that's encoded with H.264 video and AAC or MP3 audio. The transrated output has multiple bitrates that are keyframe aligned for adaptive streaming. The highest output bitrate is the original source stream. The default Transrate template has several sample encoding presets in which the Audio Codec setting is set to Passthrough because the source audio is already AAC, a supported playback audio codec for Wowza Streaming Engine. The Video Codec setting is set to H.264 because other properties are set to customize the resultant stream.

• Audio Only – Ingest a source stream with G.711 (µ-law and A-law)/MPEG-1 Layer 1/2/MPEG-1 Layer 3 (MP3) audio and convert it to AAC for compatibility with additional player technologies. If your source stream includes video, Transcoder ignores it when using this template. See Transcode only the audio channel of an incoming stream with Wowza Streaming Engine.
• Transcode H265 –  In Wowza Streaming Engine version 4.8.0 and later, ingest a source stream that isn't encoded with H.265 video. The transcoded output has multiple bitrates, each encoded with H.265 video. Note that the H.265/HEVC codec isn't widely supported by playback protocols and players. See Stream using HEVC/H.265 with the Transcoder in Wowza Streaming Engine for more information.

You can configure Transcoder templates in Wowza Streaming Engine Manager by setting the active Transcoder stream names and bitrates. Encoding presets define the parameters of the transcoded or transrated output renditions. Each preset represents an encoded bitrate rendition. Based on your needs, you can have a single template with multiple presets or you can have multiple templates. Be sure to consider your configuration and available bandwidth when determining how many presets you use.

Use the following procedure to activate streams in Transcode, Transrate, or Audio Only templates. This example configures the Transrate template ([install-dir]/transcoder/templates/transrate.xml). Make a backup copy of this file before modifying it.

Enable the Transcoder

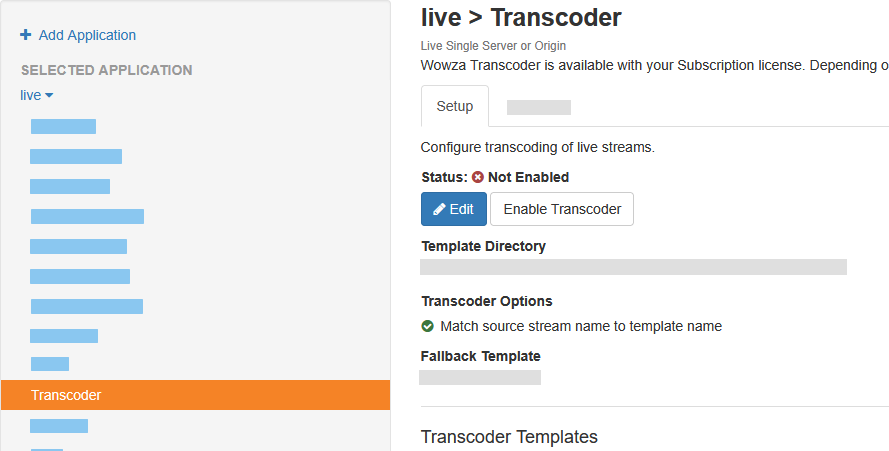

1. In the Applications contents panel, select your live application, and then click Transcoder. Then in the details page, click Enable Transcoder.




2. Restart the application.



Limit incoming streams on a Transcoder

You can limit the number of incoming transcoded streams allowed for your application. This is helpful when you want to manage billing and overage costs. You're limited to 10 concurrent, transcoded channels per instance per month. You can use the following steps to limit the amount incoming connections. For more information, see Wowza Streaming Engine Pricing or Licensing Transcoder.

1. In the Applications contents panel, select your live application.
2. From the Setup tab, click Edit.

3. Scroll down to the Maximum Connections section.
4. Select the Limit number of connections checkbox.
5. Enter the number of allowed connections in the textbox.

6. Click to Save your settings.
7. Restart the application for the changes to take effect.

Monitor transcodes across your server

To help manage costs and usage, you can monitor the total number of concurrent transcodes across your server. Use these steps to get this information about your Transcoder usage. For more information, see Wowza Streaming Engine Pricing or Licensing Transcoder.

1. In Wowza Streaming Engine Manager, click the Server tab.
2. In the Server contents panel, click Transcoder.
3. On the Transcoder page, check the Currently Transcoding section for the number of channels.

A channel is a single incoming stream ingested by the Transcoder. For billing purposes, the maximum number of concurrent streams ingested by the Transcoder at any given time during the billing period is counted. The total number of streams ingested during the billing period isn't counted.

Configure an encoding preset

1. On the Setup tab, under Transcoder Templates, click the Transrate (Default) template.

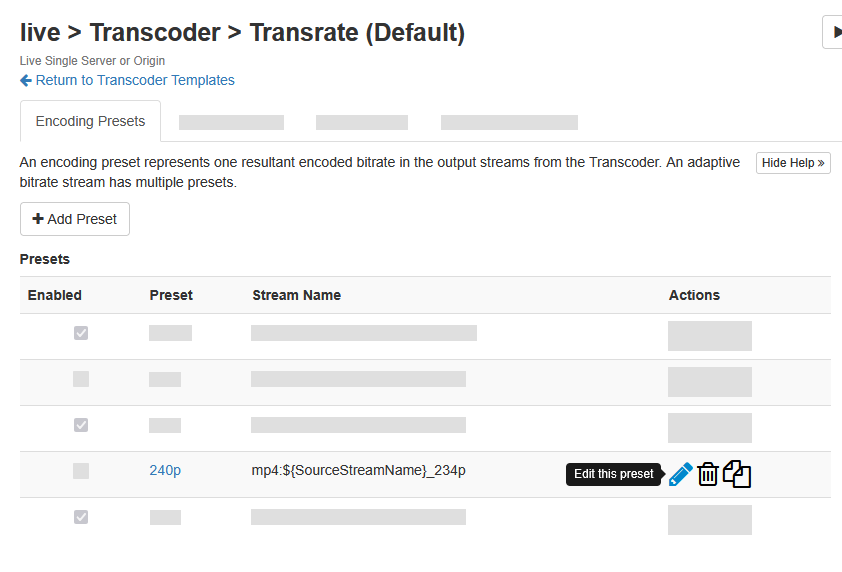

2. In the Presets list, click the Edit icon for the 240p preset.




3. Accept the default settings or edit the options for a 240p encoded stream. For more information about the encoding preset options available in Wowza Streaming Engine Manager, see Template details - Encode.
4. Click Save to save the settings.

5. In the Presets list, click 240p, and then click Enable Preset to enable the updated 240p preset.





Configure the decoding preset

1. Click Return to Transcoder Template.

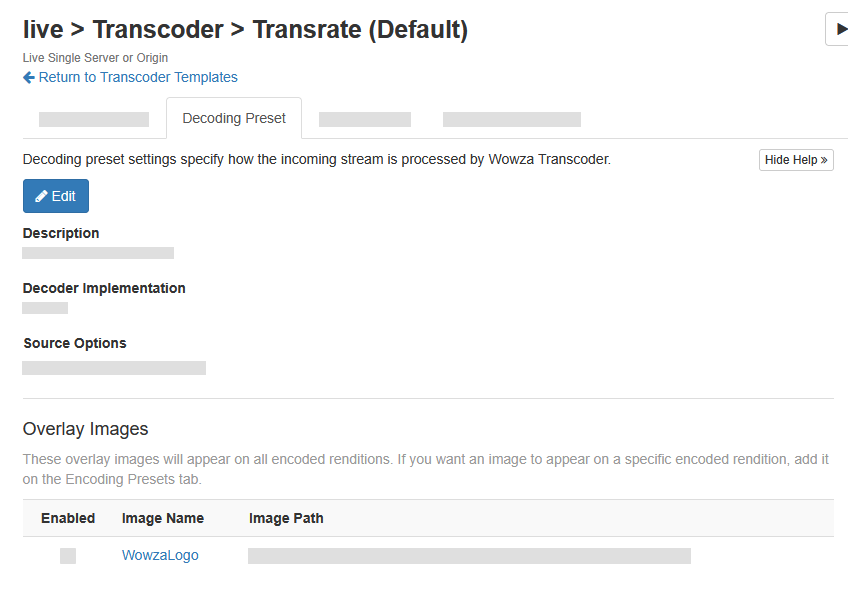

2. Click the Decoding Preset tab, and then click Edit.



3. Accept the default settings or edit the decoding options. For more information about the decoding options available in Wowza Streaming Engine Manager, see Template details - Decode.
4. Click Save.

Configure the scaling preset

1. Click Return to Transcoder Template.

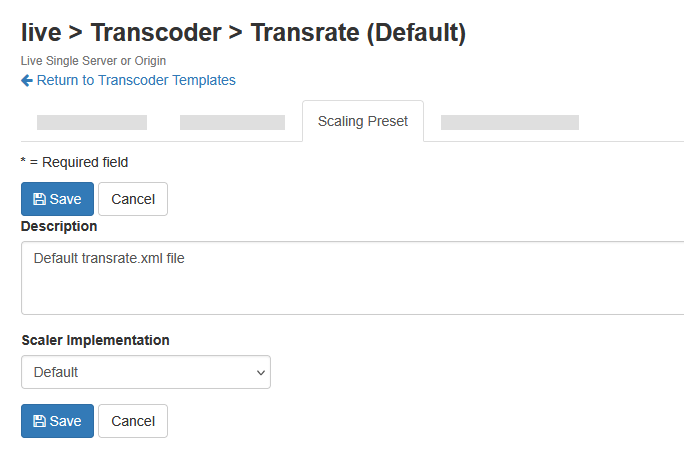

2. Click the Scaling Preset tab, and then click Edit.

3. Accept the default settings or edit the decoding options. For more information about the decoding options available in Wowza Streaming Engine Manager, see Template details - Decode.
4. Click Save.

Add a graphic overlay

You can apply static GIF, JPEG, PNG, and BMP overlay images to streams to achieve stationary image effects such as a watermark to your video. You can customize the location, size, alignment, and opacity of the image using the settings described in this section.

You can add a different overlay image to each encoded output rendition on a template's Encoding Presets tab. If you want to have the same overlay image for all encoded output renditions, you should apply it to the decoded stream on a template's Decoding Preset tab. A decode-level graphic overlay is the same as an encode-level graphic overlay except that the overlay is applied to the decoded stream. This means that all encoding presets will include the overlay, making this the recommended place to define an overlay if you want the same overlay for all output renditions.

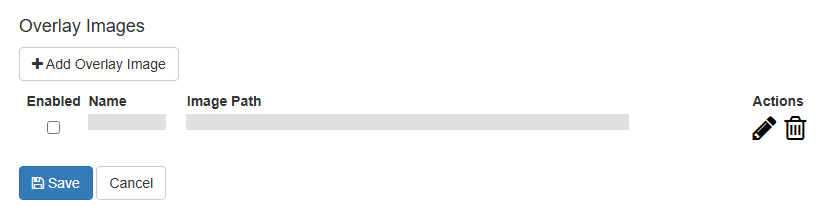

1. To add an overlay image to an encoding preset or to the decoding preset, click Edit, and then click Add Overlay Image.

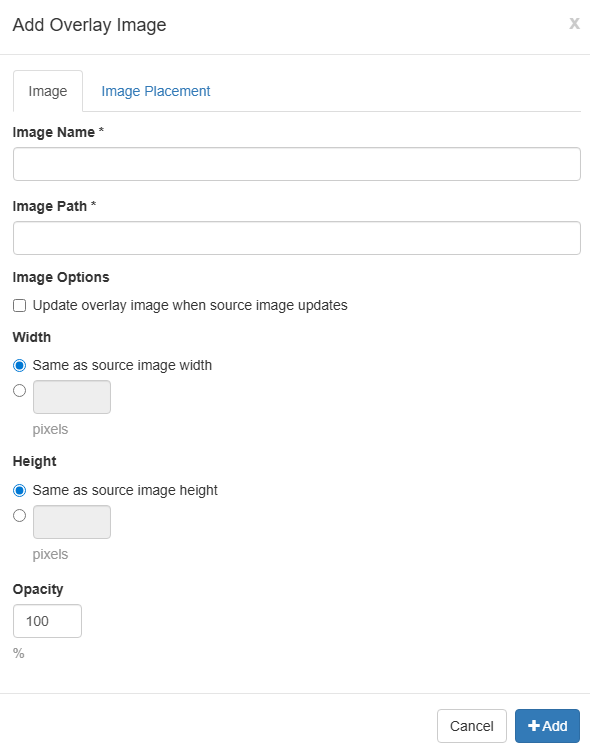

   The Add Overlay Image dialog box displays.
2. Click the Image tab and configure the options.


   • Image Name – A unique name for the overlay image to differentiate it from other images.

   • Image Path – The path to the overlay image.

   • Update overlay image when source image updates – Check the source image file for updates every 750 ms and refresh the overlay image if it has changed.

   • Width and Height – The overlay image width and height. To specify that the source image width and/or height be used, select the Same as source image option. The minimum supported width and height is 4 pixels and the sum of these values must be an even number.

   • Opacity – The overlay image opacity. Valid values range from 0 (completely transparent) to 100 (completely opaque).

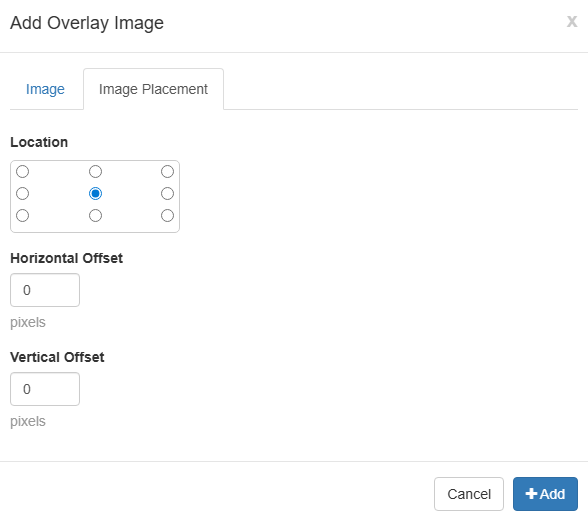

3. Click the Image Placement tab and configure the options.

   • Location – Select an option button in this box to specify the base position of the overlay image. Think of the location as analogous to the display on a playback device.

   • Horizontal Offset and Vertical Offset – Specify a horizontal and/or vertical offset (in pixels) for the overlay image from the base position that you specified in the Location box. Values must be zero or greater (even-numbered values recommended). For example, to align an overlay image 10 pixels above the lower-right corner of the output frame, select the option button in the lower-right corner of the Location box, and then enter 10 in the Vertical Offset box.
4. Click Add.
5. To enable an overlay image, click the Enabled checkbox for the overlay image, and then click Save.




You can enable multiple overlay images for a single preset. If you enable multiple overlay images, you can use the Move Up and Move Down icons to arrange them in the proper order. In the video, images that are higher in the list are displayed on top of images that are lower in the list.

Select the Transcoder template for an application or stream

By default, all transcoding sessions associated with an application use the same Transcoder template. The active transcoder template can also be based on the stream name. To configure all transcoding sessions for a particular stream to use the same transcoder template, complete the following steps:

1. Under Transcoder Options, select the Match incoming stream name to template name check box, click Save, and then restart the application.




2. Under Transcoder Templates, click Copy Template.

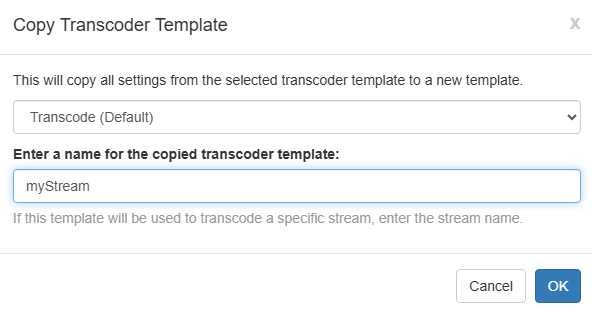

3. In the Copy Transcoder Template dialog box, select Transcode (Default). Name the template (for example, myStream.) and then click OK.

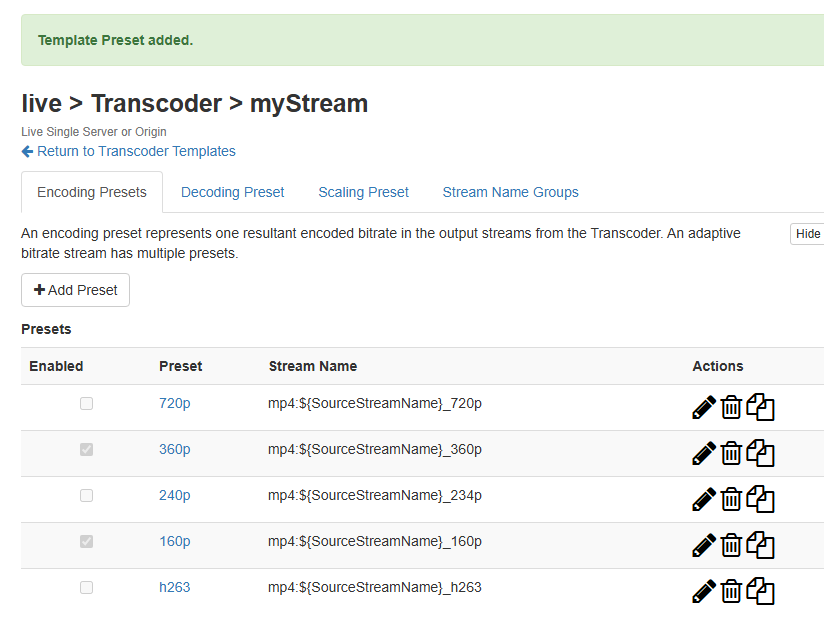

4. Edit the encoding preset options or add new presets for the copied template.



   This will become the transcoding template for the stream named myStream. Other incoming streams to this application can have a template with a corresponding name for transcoding or transrating; otherwise, they will use the Fallback template.



To configure an application to use the same Transcoder template for all transcoding sessions (default), complete the following steps:

1. In the contents panel for your live application, click Transcoder, and then click Edit.




2. Under Transcoder Options, clear the Match incoming stream name to template name check box, and then click Save.



   Clearing the check box means that all incoming streams will use the same template.

For information about playback using transcoded or transrated streams, see Stream adaptive bitrate content with Wowza Streaming Engine.

View adaptive bitrate Stream Name Groups

---

The Transcoder templating system groups streams together in logical groups called "Stream Name Groups" for live playback. These groups are defined in the template and created automatically when Transcoder is enabled and an incoming stream is active. Stream Name Groups are visible in Wowza Streaming Engine Manager and the logically grouped streams are available using the ngrp: stream name prefix for adaptive bitrate delivery. The newly encoded set of multiple bitrate streams have aligned keyframes to enable adaptive bitrate delivery from Wowza Streaming Engine for RTMP, HLS, and MPEG-DASH. Stream Name Groups serve the same purpose as a Synchronized Multimedia Integration Language (SMIL) playlist file.

To view Stream Name Groups in Wowza Streaming Engine Manager:

1. In the Applications contents panel, select your live application, and then click Incoming Streams.

2. Click View by Group.


   This view organizes the list of incoming streams alphabetically by group name. Incoming streams that aren't part of a group are displayed in a group named Ungrouped Streams.

To play a multiple bitrate live stream, the URLs using each of the player technologies would be the following:

HLS

http://[address]:1935/myApplication/ngrp:myStream_all/playlist.m3u8

MPEG-DASH

http://[address]:1935/myApplication/ngrp:myStream_all/manifest.mpd

Configure the Transcoder in XML

---

The installed transrate.xml or transcode.xml template files include transcoded streams with the following stream names enabled by default:


• [stream-name]_360p – High Profile stream
• [stream-name]_160p – Baseline Profile stream
• ngrp:[stream-name]_all – Adaptive bitrate stream for HLS and MPEG-DASH streaming

The [stream-name] is the name of a stream that the encoder sends to Wowza Streaming Engine. For example, if the incoming stream from the encoder is myStream, then the transcoded streams will be myStream_360p, myStream_160p, and ngrp:myStream_all.

All incoming streams that are published to an application are transcoded based on the template that's configured using the Transcoder/Templates setting in the [install-dir]/conf/[application]/Application.xml file. You can transcode a single incoming stream to as many new streams as you like.

Transcoder template XML reference

For details about template XML settings, see the following sections on the different blocks in Transcoder templates:


• Template details - SortBuffer

• Template details - Encode

• Template details - Decode

• Template details - Scale

• Template details - StreamNameGroup

Template details - SortBuffer

With Wowza Streaming Engine 4.6.0 and later, the post process block (<PostProcess>...</PostProcess>) is included in the default Transcoder templates. You can use the <PostProcess> block to configure the sort buffer, which is needed in order to have a complete frame for transcoding or transrating a stream. If the <PostProcess> block isn't present in the template, the default values for sort buffer settings are used.


• Enable – If set to true, the sort buffer is active. If set to false, the sort buffer isn't used. The default value is true.

• BufferSize – The time, in milliseconds, that packets are maintained in the sort buffer before they're flushed. The default value is 750 milliseconds.

• FlushInterval – The frequency, in milliseconds, that the sort buffer is processed. The default value is 75 milliseconds.

Template details - Encode

The encodes block (<Encodes>...</Encodes>) contains one or more encode blocks (<Encode>...</Encode>), each of which represents an encoding preset. A single template can have multiple <Encode> blocks. You must configure the Video Codec and the Audio Bitrate settings when transcoding. If you forget to assign a value for Audio Bitrate, a default value is assigned so that the encoding of the resultant stream won't fail.


• Enable – If set to true, the encode block is active. If set to false, the encode block is ignored. The default template has multiple <Encode> block examples, not all of which are enabled. You can enable or add additional encode blocks to your template as needed.

• Name – Each encode block is given a name that's used in logging. This name must be unique within a given template.

• StreamName – The transcoded stream name. You can use the ${SourceStreamName} variable, which is replaced with the source stream name. Again, the resultant stream name must be unique for a given application. It's best to use the source stream name as part of the destination stream name.

• Video/Codec – The video codec to use:

  • H.264 – Transcode video to H.264. Also use when modifying source H.264 to achieve a different bitrate, profile, etc.
  • H.265 – In Wowza Streaming Engine 4.8.0 and later, transcode video to H.265/HEVC.

    Note: For best results when using the H.265 video codec, follow the instructions in Stream using HEVC/H.265 with the Transcoder in Wowza Streaming Engine.
  • VP8 and VP9 – In Wowza Streaming Engine 4.5.0 (and later), transcode video to VP8 and VP9 respectively.

    Note: For best results when using the VP8 and VP9 video codecs, follow the instructions in Transcode live streams to WebM for MPEG-DASH playback with Wowza Streaming Engine.
  • PassThru – Pass the source video stream through to an output rendition without making any changes.

  • Disable – Disable video in the output rendition.
• Video/Implementation – The accelerated video encoding implementation to use:

  • Default – The default built-in software video encoder (not hardware-accelerated) for the output video codec. For H.264 and H.265, the default encoder is MainConcept. For VP8 and VP9, the default encoder is VPX.
  • QuickSync – Intel Quick Sync encoding acceleration (Windows and Linux). If your hardware doesn't support the Quick Sync instruction set, the unaccelerated default software encoder is used.
  • NVENC – NVIDIA NVENC encoding acceleration. If your NVIDIA graphics card doesn't have the NVENC hardware-based video encoder, then the unaccelerated default software encoder is used.
• Video/GPUID – Transcoder can be used with more than one graphics card when using NVIDIA encoding implementations; however, it won't automatically load balance between multiple cards. You must directly address the specific card that you want to use in this property. The available GPUs are enumerated when the Transcoder is started with ID values starting at 0. A value of -1 tells the software to always select the first GPU in the list of enumerated GPUs for transcoding. To always use a specific GPU, enter its enumeration ID value.

• Video/FrameSize – The transcoded frame size to use:

  • letterbox – Maintains the aspect ratio of the source video and scales to fit the destination frame size with black bars to fill empty space.

  • fit-width – Adjusts the height to fit the specified width while maintaining the incoming aspect ratio.

  • fit-height – Adjusts the width to fit the specified height while maintaining the incoming aspect ratio.

  • crop – Scales and crops the source video to fit the destination frame size while maintaining the incoming aspect ratio.

  • stretch – Stretches the video to the fit the specified width and height.

  • match-source – Uses the same frame width and height as the source video.
• Video/Crop – Crops the source video frame. The x,x,x,x values represent the number of pixels to crop on the left, right, top, and bottom of the source video frame. Can't be used with Video/SourceRectangle.

• Video/SourceRectangle – Selects only a portion of the source video frame for transcoding. The x,x,x,x values represent the top, left, width, and height of the rectangle. Can't be used with Video/Crop.

• Video/Profile – The video profile to use:

  • baseline – Lowest complexity stream for mobile live streaming.

  • main – Higher complexity and higher quality stream for desktop and over-the-top streaming.
  • high – High-complexity stream for broadcast and disc storage applications.
• Video/Bitrate – The target video bitrate to use, in bits per second (bps). If Video/Codec is set to PassThru, this value is ignored unless you specify the ${SourceVideoBitrate} variable, which is replaced with the video bitrate of the source stream.

• Video/KeyFrameInterval – The keyframe interval to use:

  • FollowSource – If set to true, the keyframe interval of the transcoded video is the same as the keyframe interval of the source video. If set to false, the Video/KeyFrameInterval/Interval value (see below) determines the keyframe interval.

  • Interval – An integer value (n) that specifies how often keyframes are generated (every nth frame is a keyframe)
• Video/Overlays/Overlay – Container for specifying a graphic overlay such as a watermark. You can apply overlays to both the decoded stream and to each newly encoded output rendition. If you want to have the same overlay for all output renditions, then you should apply the overlay to the decoded stream.

  Note: See Overlay image requirements for the Transcoder in Wowza Streaming Engine for image requirements.
  • Enable – Set to true to enable graphic overlays. Overlays with transparency require extra CPU resources.

  • Index – Graphic overlay Z-order.

  • ImagePath – Path to the graphic overlay image. GIF, JPEG, PNG, and BMP image file formats are supported.

  • CheckForUpdates – When set to true, Transcoder checks for updates to the image file every 750 milliseconds and updates the overlay if it changes.

    Note: When using the CheckForUpdates feature to dynamically monitor for overlay image file updates, be sure to properly update the image file in a single atomic operation. This ensures that Transcoder gets the complete image file when it determines that an update has happened. For more information about atomic file updates and file modification date issues in Windows, see How to do atomic writes in a file and Windows NT Contains File System Tunneling Capabilities.
  • Opacity – Overlay opacity. Valid values range from 0 (completely transparent) to 100 (completely opaque).

  • Location/X and Location/Y – Offset of overlay from base position. Negative values are valid.

  • Location/Width and Location/Height. Width and height of overlay. If set to ${ImageWidth} and ${ImageHeight}, the original image size is used.

  • Location/Align – Default location of overlay (horizontal,vertical). Valid horizontal values are left, right, and hcenter; valid vertical values are top, bottom, and vcenter. As an example, to place the overlay 10 pixels from the bottom-right corner of the output frame:

    <Location>
        <X>-10</X>
        <Y>-10</Y>
        <Width>${ImageWidth}</Width>
        <Height>${ImageHeight}</Height>
        <!-- horiz: left, right, hcenter - vert: top, bottom, vcenter -->
        <Align>right,bottom</Align>
    </Location>

• Video/Parameters – Implementation-specific advanced parameters that control the video encoding process. See Use video encoding parameters with the Transcoder in Wowza Streaming Engine for more information.

• Audio/Codec – The audio codec to use:

  • AAC – Transcode audio to AAC.

  • Vorbis – With Wowza Streaming Engine 4.5.0 (and later), transcode audio to Vorbis.

  • Opus – With Wowza Streaming Engine 4.5.0 (and later), transcode audio to Opus.

    Note: For best results when using the Vorbis and Opus audio codecs, follow the instructions in Transcode live streams to WebM for MPEG-DASH playback with Wowza Streaming Engine.
  • PassThru – Pass the source audio stream through to the output rendition without making any changes.

  • Disable – Disable audio in the output rendition.
• Audio/Bitrate – The target audio bitrate to use, in bits per second (bps). The value is ignored if Audio/Codec is set to PassThru. The ${SourceAudioBitrate} variable can be used and will be replaced with the audio bitrate of the source stream.
• Audio/Resample – Container for converting the audio sample rate.

  • Enable – Set to true to enable audio resampling. The default value is false.
  • SampleRate – The audio sample rate in Hz.
  • Channels – The number of audio channels: 1 for mono or 2 for stereo.
• Audio/Parameters – Implementation-specific advanced parameters that control the audio encoding process. See Use audio encoding parameters with the Transcoder in Wowza Streaming Engine for more information.

Template details - Decode

The decode block (<Decode>...</Decode>) represents the decoding process. A template has just one <Decode> block.


• Video/Implementation – The accelerated video decoding implementation to use:

  • Default – The default built-in software video decoder (not hardware-accelerated) for the source video codec. For H.264 and H.265, the default decoder is MainConcept. For VP8 and VP9, the default decoder is VPX.
  • QuickSync – Intel Quick Sync encoding acceleration (Windows and Linux). If your hardware doesn't support the Quick Sync instruction set, the unaccelerated default software encoder is used.

  • NVCUVID –NVIDIA Video Codec SDK Decoder (also known as NVCUVID or NVDEC). Most modern NVIDIA graphics cards have fixed-function hardware that uses NVIDIA Video Decoder APIs for accelerated decoding on NVIDIA GPUs with CUDA. If your NVIDIA graphics card doesn't support the NVCUVID/NVDEC hardware-based video decoder, the unaccelerated default software encoder is used.
• Video/Deinterlace – Set to true if the source video stream needs to be deinterlaced for progressive scan displays.

• Video/Overlays/Overlay/[Elements] – A decode-level graphic overlay is the same as an encode-level graphic overlay except that the overlay is applied to the decoded stream. This means that all encoding presets will include the overlay, making this the recommended place to define an overlay if you want the same overlay for all output renditions. Note that overlays with any transparency require extra CPU resources.

  Note: See Overlay image requirements for the Transcoder in Wowza Streaming Engine for image requirements
• Video/Parameters – Implementation-specific advanced parameters that control the video decoding process. See Use video decoding parameters with the Transcoder in Wowza Streaming Engine for more information.

Note: See Replace missing video frames to ensure a consistent frame rate with Wowza Streaming Engine to configure the decoder to identify and replace missing video frames and ensure a consistent output frame rate.

Template details - Scale

With Wowza Streaming Engine 4.6.0 and later, the scale section (<Scale>...</Scale>) is included in the default Transcoder templates. You can use the <Scale> block to configure video scaling. By default, video scaling is done using CPU resources, but it's possible to offload transcoder video scaling to NVIDIA CUDA-based GPUs. This reduces the overall CPU usage of a given set of transcoder sessions. CUDA scaling works on all NVIDIA CUDA cards that are Tesla technology or greater.

CUDA-based video scaling can be used with any combination of decoding and encoding implementations. For example, you can decode a stream using QuickSync, scale using CUDA, and encode using default. However, CUDA scaling is most efficient when used with the NVCUVID decoder and NVENC encoder. When used this way, video frames aren't transferred from the graphics card to system memory. CUDA scaling also offloads graphic overlay processing to the GPU.


• Implementation – If set to CUDA, NVIDIA CUDA-based GPU video scaling is enabled. If set to default (or if the <Scale> block isn't in the template), CPU resources are used for video scaling.

Template details - StreamNameGroup

The stream name group block (<StreamNameGroup>...</StreamNameGroup>) represents a group of streams that can be played using adaptive bitrate streaming. The <Name> is the name of the stream name group. The <StreamName> is used to play the multiple-bitrate stream when using HLS or MPEG-DASH streaming. For example, if the incoming stream name is myStream, then the above stream name group name is myStream_all. When customizing your template, you should define and successfully play individual resultant streams before defining your group.

Select the Transcoder template for an application or stream

By default, all transcoding sessions associated with an application use the same Transcoder template. The active transcoder template can also be based on the stream name. To configure all transcoding sessions for a particular stream to use the same transcoder template, complete the following steps:

Note: In the instructions, replace [streamName] with the name of the stream being configured.

1. Open [install-dir]/conf/[application]/Application.xml in a text editor and change the Transcoder/Templates value to [streamName].xml:

   <Templates>[streamName].xml</Templates>

2. Copy the [install-dir]/transcoder/templates/transrate.xml file and name it [install-dir]/transcoder/templates/[streamName].xml. This file will become your transcoding template for this stream.

To configure an application to use the same Transcoder template for all transcoding sessions (default), complete the following steps:

Note: In the instructions, replace [application] with the name of the application being configured.

1. Open [install-dir]/conf/[application]/Application.xml in a text editor and change the Transcoder/Templates value to [application].xml:

   <Templates>[application].xml</Templates>

2. Copy the [install-dir]/transcoder/templates/transrate.xml file and name it [install-dir]/transcoder/templates/[application].xml. This file will become your transcoding template for this application.

Troubleshooting

---

Logging

Transcoder leverages the existing Wowza Streaming Engine log files, [install-dir]/logs. For more information about logging capabilities, see Logging.

Running Wowza Streaming Engine in standalone mode enables you to view these messages real time from the console window. For a list of messages, scenarios that can cause these messages, and suggestions for resolution, see Troubleshoot error messages in Wowza Streaming Engine.

Logging messages in the [install-dir]/logs/wowzastreamingengine_access.log file indicate if Wowza Streaming Engine and Transcoder are configured properly. If so, the logs will show that the Transcoder libraries and templates have been loaded, the detected hardware information, and the transcoded streams being published.

When Wowza Streaming Engine starts, it logs how the Transcoder is licensed.

Transcoder logging messages look like this:

Troubleshooting tests

Test #1: Basic live streaming

Use one of the following articles to verify that your live stream is properly set up without transcoding. In this test, the Transcoder/LiveStreamTranscoder property should be disabled in the Application.xml file.


• Set up live streaming using an RTMP-based encoder in Wowza Streaming Engine

• Set up live streaming using an RTSP/RTP based encoder in Wowza Streaming Engine

• Publish and play a live stream (MPEG-TS based encoder) in Wowza Streaming Engine

• Set up live streaming using a native RTP encoder with SDP file in Wowza Streaming Engine

Test #2: Verify Transcoder license

Open the [install-dir]/conf/server.license file in a text editor. If Transcoder is licensed, the file has a line with the prefix TRNU4 such as, TRNU4-XXXXX-XXXXX-XXXXX-XXXXX-XXXXX.

Test #3: Check to see that Transcoder is enabled

Under Transcoder in Wowza Streaming Engine Manager, look at the Status. If the  Status is Not Enabled, click Enable Transcoder.

Test #4: Play a single transcoded stream

After you've verified that Wowza Streaming Engine is configured correctly for live streaming and you can play a live stream successfully, play a single transcoded stream.


1. Re-enable transcoding in the Application.xml file by setting the Transcoder/LiveStreamTranscoder property value to transcoder:

   <LiveStreamTranscoder>transcoder</LiveStreamTranscoder>

2. Use the "Playback" section of the article that you used to set up basic live streaming as a reference to test the playback of a single transcoded stream.

3. If you can't play the newly encoded stream, use the following troubleshooting checklist and look for verification information in the [install-dir]/logs/wowzastreamingengine_access.log file:

   1. Did the Transcoder libraries load? Failure of the libraries to load could be caused by malformed XML in Application.xml, a faulty installation, or a permissions issue. The following is an example message from a Windows 64-bit installation:

      Comment server INFO 200 TranscoderSessionNative.loadLibrary: Load Transcoder list: C:\Program Files (x86)\Wowza Media Systems\Wowza Streaming Engine 4.6.0/lib-native/win64/transcoder.list
   2. Did the Transcoder template load? Failure could be due to specifying a template in Application.xml that doesn't exist or the template isn't in the specified location. Sample templates are located in [install-dir]/transcoder/templates. The following example shows one of the default template files (transrate.xml) being loaded:

      comment server INFO 200 LiveStreamTranscoder.init[myApplication/_definst_/myStream]: Load Transcoder template: C:\Program Files (x86)\Wowza Media Systems\Wowza Streaming Engine 4.6.0/transcoder/templates/transrate.xml
   3. Is the source stream being published?

      publish stream INFO 200 myStream_360p

      If not, go back to Test #1, Basic live streaming.

   4. Are input source streams being decoded?

      decoder-video-start transcoder INFO 200 myStream {codec:avc1.64002a, profile:High, level:4.2, frameSize:1920x1088, displaySize:1920x1080, frameRate:60.0}

      decoder-audio-start transcoder INFO 200 myStream {codec:AAC, objectType:LC, sampleRate:48000, channels:2, resample:false}

      If not, verify that the source stream is using a supported codec.

   5. Are streams being encoded as defined in the template? The following example shows activity for myStream_160p, as defined in the sample templates. Failure could be due to a different template specified in Application.xml or problems from earlier in this checklist.

      encoder-video-start transcoder INFO 200 myStream {name:160p, bitrate:105000, codec:avc1.42e00d, profile:Baseline, level:1.3, frameSize:288x160, displaySize:288x160, frameRate:60.0}

      encoder-audio-start transcoder INFO 200 myStream {name:160p, bitrate:96000, resample:false, codec:AAC, objectType:LC, sampleRate:48000, channels:2}

Test #5: Play a group

After you have played a stream successfully, play a group.


1. Is the group being created? Verify that the <StreamNameGroups>/<StreamNameGroup> section in the template is correct. The following example shows that the myStream_mobile group is added, as specified in the sample templates:

   comment server INFO 200 TranscoderStreamNameGroup.addInternal[myApplication/_definst_/myStream]: Add name group: myStream_mobile
2. Is the source file missing audio?

3. Does the name specified in the URL match the <StreamNameGroup>/<StreamName> property?

4. Is the expected template being loaded? If a different template is loaded, the name of your group and, therefore, your URL syntax are probably different.

5. Do the <StreamNameGroup>/<Members>/<Member>/<EncodeName> values match the <Encodes>/<Encode>/<Name> values?

Problems transcoding with a custom template or source

Verify configuration

1. Is the correct Transcoder template file loaded?

   comment server INFO 200 LiveStreamTranscoder.init[myApplication/_definst_/myStream]: Load Transcoder template: C:\Program Files (x86)\Wowza Media Systems\Wowza Streaming Engine 4.6.0/transcoder/templates/myTemplate.xml

   In this example, the template myTemplate.xml is being loaded. If the wrong template is loaded, check the <Transcoder>/<Templates> value in Application.xml. Remember that you can have multiple templates specified in Application.xml. Order matters: Wowza Streaming Engine uses the first template listed.

2. Do the <StreamNameGroup>/<Members>/<Member>/<EncodeName> values match the <Encodes>/<Encode>/<Name> values?

3. Are you playing a source that has unsupported codec? Remember that additional codecs are supported for transcoding only, so you don't want to specify those source files as part of your stream name group.

Verify source

1. Is your source missing audio?

2. Is your source file encoded with one of the supported ingest codecs?

More resources

---

• About Wowza Streaming Engine Transcoder
• Wowza Streaming Engine Transcoder performance benchmark
• Tune Wowza Streaming Engine for optimal performance
• Stream using HEVC/H.265 with the Transcoder in Wowza Streaming Engine
• Replace missing video frames to ensure a consistent frame rate with Wowza Streaming Engine
• Transcode live streams to WebM for MPEG-DASH playback with Wowza Streaming Engine
• Transcode only the audio channel of an incoming stream with Wowza Streaming Engine
• Fix a missing frame rate issue when using the Transcoder in Wowza Streaming Engine
• Reduce a transcoded stream's frame rate in Wowza Streaming Engine
• NVIDIA Video Encode and Decode GPU Support Matrix
